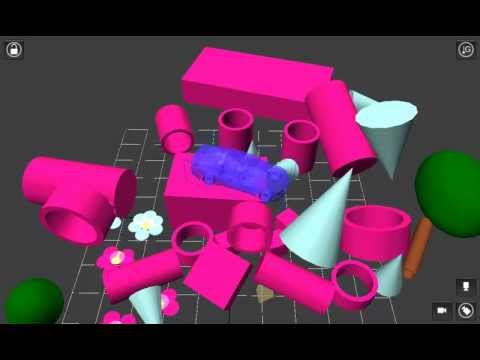

Qubism has been designed from scratch with a dedication on touch operation and performance. Focus on and Zoom in on areas that need work at higher precision and Qubism will accommodate.
Work is ongoing and takes a fair bit of my free time but constructive feedback is welcome. Please email me if you experience any problems.
Exporting and saving Images and Models:
Select the 'camera' tool from the leftmost menu and select the file type from the rightmost (tick) menu.
•PNG: Show off your model to you friends, should work with any social and photo apps installed
•JSON: Share you model with other Android devices running Qubism via email with this option
•DAE: Export your model in Collada format to develop it further with tools like Blender or Sketchup
All these files can be sent via gmail or saved to SD card if you have an app like 'Send to SD card' installed.
All tools available in the menu only need a single touch to operate but the following shortcuts can speed things up:
•Cancel operation in progress: Tap screen with a second finger while the first is still on the screen
•Pan, Zoom and rotate: Use two fingers on the screen (e.g. pinch screen)
•View: Place two fingers on the screen then remove one
•Focus: Place one finger on a qube and tap twice quickly with a second finger
•Qubes that are too close or two far away from the centre of the red axes will be cropped by OpenGL. Keep the red axes near the area you want to work on using the focus and pan tools before zooming in.
•The line removal rendering options are not perfect, it trims outlines where two Qubes meet but this can have unexpected results.
•Transparency requires Qubes to be rendered back to front, this is fine when editing but in camera mode this order is only calculated when the rendering mode changes and may be incorrect once you change the view. The new refresh button will appear once you change view and will recalculate the order but artifacts are still possible.
•Out of Memory issues can unavoidably occur outside of my control. Qubism will save your model for you and it will have a ? for its thumbnail when you re-enter the application.
•Qubism will never be able to load existing 3D file formats (Obj and even DAE) because it would be extremely difficult and often impossible to convert triangles meshes into qubisms internal format.
* viewing / drawing & constructing / polygon & patch modeling / texturing / 3d-painting
* intuitive use of multi-touch and motion-sensors throughout
* adapts to almost any Android-device, highly configurable
to get help, report bugs, and to suggest features and improvements , see http://www.polycount.com/forum/showthread.php?t=143422
•change the view while drawing or modeling, using multi-touch or by tilting your device
-up to 4 touch-points, gyroscope / accelerometer
•toggle wireframe, shading, textures, lighting, x-ray, backface cull; hide objects / faces
•perspective / othographic projection
•draw freehand-lines, CAD-polylines & splines in 3d, combine them to complex networks
-rotate the construction-plane while drawing
-adjust splines via anchor-points & handles using multi-touch
•create rectangles, grids, boxes, polygons, prisms, pyramids, discs, cylinders, cones, tori, spheres, helices
-auto-align them to surfaces
•select & transform any number of vertices, edges, faces or objects
-multi-touch lasso & paint selection
-select paths, loops, rings, border, outline
-grow/shrink, invert, convert selections
•move simultaneously in all spatial directions, using two fingers
•rotate freely around all 3 axes, scale, flip objects
-individual / common pivot
•snap to a 3d-grid, points, lines or faces
•link objects hierarchically
•create copies, instances & arrays
•model arbitrary complex polygon meshes, manifold or not
-normals, colors & UVs are retained
•weld vertices (center / target / auto), merge or collapse faces & edges
•extrude or bridge edges & faces
•subdivide regularly, insert edge loops or “draw” edges
•detach, split, slice
•chamfer edges & corners
•"inflate" lines or edges to pipes
-at branchings, the simplest possible joints are created, yielding contiguous manifold surfaces
•"thicken" surfaces to solids
-create manifold objects even from complex constructs
•create "patch-surfaces" from spline-networks
-2-, 3-, 4-sided patches
-adjust them via control-points & handles, using multi-touch
-create smooth surfaces, creases & cusps
-mix patches with polygon-meshes
•place directional-, point- & spot-lights
-adjust color, ambient / diffuse intensity, decay, cone-angle & -falloff
•define materials: diffuse & specular color, shininess, emission, transparency, texture
•assign them to whole objects or individual faces
•assign vertex-colors to faces, edges, vertices, creating gradients
•view & edit normals
•map textures using planar, box, cylindrical or spherical projection, or face / wrap mapping
•adjust the maps directly in the 3d-viewpot, split or weld UVs
•use your own images, or the included over 100 varied materials
-adjust & crop the images
•create procedural textures: gradient, tile, checker, clouds, turbulence
•paint directly on surfaces in the 3d-viewport
•move, resize & zoom "windows" using multi-touch gestures
•choose any color with one grip by moving in the 3d color-space with two fingers
•change the colors & sizes of the interface, pointer, vertices, edges...
•import & export .obj files incl. materials, textures, normals*
•undo any operation, save the full construction-history to a file*
•a status-bar shows hints for using the tools
•a detailed user manual is available, covering all of Spacedraw's functions
~ to start using Spacedraw, follow the Quick start tutorial: http://www.scalisoft.com/quickstart.htm ~
~ watch the video in at least 480p to make all details discernible ~
* the free version only saves / exports scenes with up to 1000 vertices, and no history
This app provides engineers and purchasers in the mechanical engineering, automotive and building industry direct access to thousands of parts from more than 400 certified catalogs of leading global manufacturers.
The 3D CAD models are compliant with major world standards and are suitable for use in current CAD systems, such as: CATIA®, Autodesk® Inventor®, SolidWorks®, Creo™ Parametric, NX™, AutoCAD®, Solid Edge®, etc.
Benefits of the 3D CAD models app:
- Download of 2D and 3D CAD models completely free of charge
- CAD models can be easily configured by the user
- All CAD models are certified from the suppliers
- All current CAD formats available
CAD Touch is really easy to use and it's fast multitouch interface will give you the precision and flexibility that pen and paper fail to archive, finally you will have the perfect on-the-go companion for desktop software like AutoCAD™, SketchUp™ or Solidworks™ and every other DWG/DXF compatible app.
CAD Touch supports every DWG (up to AutoCAD™ 2013) entities for viewing and editing as it uses industry-proof input/output DWG importers, and you can draw new lines, polylines, rectangles, circles, arcs, points (also by xyz coords), hatches, texts, smart/angular dimensions, sketches, revision clouds, raster image, ruler, move, rotate, scale, trim, delete, mirror, offset, group, explode, grips, OSNAP, line/patterns type, alignments guides, objects library, preloaded library with 20+ blocks, customizable library, info tool to query length/perimeter/area, layers, black or white background and many more features.
Complete support for decimal and imperial measure units (architectural feet and inches).
CAD Touch requires no internet connection, no subscription.
CAD Touch is a DWG/DXF drawings 2D editor and 2D/3D viewer, you can open, share and save your work in DWG, PDF and PNG (Pro version only, available as a separate app).
This free version has no limitations in tool power and is bound with five tutorials so you can easily try and learn CAD Touch in a few minutes. Free version does not open DWG files and does not save, please buy full version to save and open files.
A screen size of at least 4.0" is recommended (stylus is not necessary, but is well supported by cadTouch).
Please remember to close other apps before running cadTouch (to free RAM).
If you like cadTouch, leave a constructive review, a positive review ensures that we develop the app with more updates and new features, if you are facing errors or bugs please contact us instead of leaving a review at email@example.com, it's important so we can fix errors, thank you.
Express design ideas with easy-to-use tools
• Create 3D forms quickly by using our innovative 3D sketching system
• Sketching is not constrained to one plane
• Use other objects in the scene as snap references, including levels
• Sketch lines, splines and circles with local and global axis alignments and snapping options
• Directly manipulate forms using gestures for easy model changes
• Move objects more accurately by first selecting the point you wish to snap with
Easy access to site information
• Set project location in a searchable maps interface
• Review historical climate data based on location
• Import satellite image of your site
• Design directly in the context of your proposed building location
• Explore the effects of the sun using the location-aware Shadow Study tool
Collaborate with team members
• Store and share designs in the cloud using Autodesk® 360 cloud services
• Easily transfer designs to desktop applications via RVT and OBJ file formats
• Explore design ideas and add detail to early design forms using award-winning BIM technology
Participate in the community
• Our support forum has moved to: http://forums.autodesk.com
• Visit us at http://formit360.autodesk.com and share your images with the community
• Follow us on Twitter @FormIt360
What software to opt for ? Design and CAD software packages are not good because of many reasons.Is there a way out ?
ASCON has developed a fantastic application for this purpose. To start conceptual design you do not need to be a professional designer, no need to pay for engineering house services or design in CAD software. Your inspiration coupled with SubDivFormer app for Android is the way to go!
If you are neither engineer nor designer then SubDivFormer application is a right choice for coming up with a model of special gift for your friends, kids, relatives. Need a creative interior item or plaything ? Make a model of it and send it for 3D-print.
How to form a model:
How to transform a model:
* Support for Android 5 (Lollipop)
* Various bug fixes
Known Issue on Android 5 (Lollipop):
Certain DXF/DWG files with non-ASCII characters in Annotations will not be displayed properly. We are working on this issue and will have an update soon.
eDrawings Pro with in-app purchase.
eDrawings® is the only CAD viewer on Android phones and tablets that allows you to view native eDrawings files as well as native SolidWorks® parts, assemblies and drawings files.
eDrawings is the email-enabled communication tool that dramatically eases sharing of product design information. You can load and send files via email to collaborate more effectively with everyone involved in product development, including people who are not regular CAD software users to interpret and understand 2D and 3D designs.
Multi-touch gestures let you pan, zoom, and rotate models easily. eDrawings also supports drawing sheets, and exploded views for eDrawings files published from SolidWorks®.
* Intuitive and easy-to-use user interface
* Open 3D (EASM, EPRT, SLDASM, SLDPRT), 2D (EDRW, SLDDRW) and associated files from any source: email attachments, cloud storage services (Dropbox™, SkyDrive®, Google Drive, Hightail®, and others), web and FTP sites and network folders.
* Zoom, pan and rotate your 2D or 3D CAD data using multi-touch
* Animate 3D standard views
* Browse your 2D drawing sheets
* View your designs in full screen and double tap to fit it on screen
* Sample files included
Upgrade to eDrawings Pro using In-app purchase and enable new capabilities :
* Measure your designs (distance, angles, lengths, point to point and more)
* Dynamically view cross sections of your models in XY, YZ, or ZX directions from both sides and easily drag the cross section plane
* Create markups in your designs, including text notes and freehand notations
* Share marked up eDrawings files with others for review and further comments. All markups with history are saved within the eDrawings file.
Thanks for using eDrawings! Don't forget to review the app. Your feedback is important to us! Please reach out to firstname.lastname@example.org with any suggestions.
For more information, visit http://www.solidworks.com or http://www.edrawingsviewer.com
Shortcuts 3Ds Max 2016 is an excellent app for you to experience the Autodesk 3Ds Max on your computer devices for using 3D graphic design. Shortcuts 3DsMax will make your work easer.
With Shortcuts 3Ds Max 2016, you can learn by heart all shortcut keys for 3Ds Max.
Some features of Shortcuts 3Ds Max 2016:
- Shortcuts for General User Interface
- Shortcuts for Editable Poly
- Shortcuts for Particle Flow
- Shortcuts for Quad Menus
- Shortcuts for Material Editor
It uses the 3DS file format which is compatible with lots of professional software like Autodesk 3D Studio, Maya, AutoCAD and Blender. This means you can create your models on the move on your tablet or PC and import them later into the 3D package of your choice.
Use tools like "extrude", "subdivide", "smooth", "pull" and many more to create your 3D objects. Move the individual vertices around or move select multiple vertices with the box select tool.
Paint the faces different colors. Rotate the 3D shapes at any angle or choose from a list of views.
* 3D modelling
* UV maps
* Mesh primitives: Cube, sphere, cone, cylinder, torus
SightSpace 3D is a fast and easy visualization tool for Trimble SketchUp that easily conveys your designs and reduces miscommunication. With advanced 3D and Augmented Reality technologies, pre-visualize buildings, materials, fixtures, and more to effectively communicate scale and context. Check for errors during construction and close deals faster with Augmented Reality to display digital models in the real world. Utilize bookmarks, annotations, photos, and social media to simplify presentations. A SightSpace Pro subscription plan expands functionality for a complete SketchUp-to-Field experience with the addition of external GPS and markers for Augmented Reality, photo markups, model dimensions, and more.
Take Trimble SketchUp models on-the-go with the only mobile app ready for easy SketchUp-to-Field usage!
*Open SketchUp files directly from your device, Dropbox, email, or Trimble 3D Warehouse – includes native SketchUp files (.SKP), Google Earth and other .KMZ and .KML formats
*SightSpace is the only mobile app that uses native SketchUp (.SKP) files to preserve model privacy – No uploading/downloading from a website or extra software required.
*Use intuitive multi-touch controls including orbit, pan, and zoom to navigate your model
*Communicate context, scale, and location information with advanced Augmented Reality
*Share annotations, photos, screenshots, and more to colleagues via email or social networking
A SightSpace Pro subscription enables features including:
*Connect external GPS for precise Augmented Reality location
*Create and use markers for Augmented Reality presentations
*Play bookmarks as animations
*Markup photos with drawings and text
*Export all notes to PDF
*Display model dimensions created in SketchUp
If you have any feedback or questions, let us know! We offer free support by email at SightSpace@LimitlessComputing.com, an in-app knowledge base (under “I” in the upper right), and check out our Youtube videos on www.Youtube.com/LimitlessComputing.
* NOTE: Augmented Reality requires back facing camera, gps, digital compass, and accelerometer. Devices with a gyroscope will have improved AR.
* Predefined room shapes as well as free drawing of a room shape with S-Pen, mouse or touch.
* Symbol library: doors, windows, furniture, electrical, fire survey.
* Cloud synchronization to automatically backup and share plans between devices (purchased, 3 days free trial)
* Export as image (free with watermark); DXF, SVG (purchased).
* Supports metric and imperial unit systems.
* Supports Leica Disto™ bluetooth laser meters: http://www.youtube.com/watch?v=xvuGwnt-8u4
Some assembly required? Left the manuals back at the shop? Missed your last product training session?
No problem. With Inventor Publisher Mobile Viewer, you have important product information and instructions at your fingertips wherever you go. Users of Inventor Publisher software can easily publish and share 3D interactive instructions directly to iPhone, iPad and iPod touch.
Together, Inventor Publisher and the Inventor Publisher Mobile Viewer App deliver next generation instructions for visually explaining your ideas, designs, and products.
• Communicate how your products get assembled, used, taken apart, and serviced – or simply what’s great about them!
• Reduce your documentation, service, support and training costs
• Arm your sales force with 3D to win new business
Once you’ve experienced instructions in 3D, you’ll never look at documentation the same way again!
Autodesk Inventor Publisher Mobile Viewer comes with a wide variety of sample files for your enjoyment. To create your own 3D interactive instructions, Autodesk Inventor Publisher software is required.
✓ Zoom, pan & rotate in 3D using Multi-touch
✓ Play or scrub through animated sequences of step-by-step instructions
✓ Double-tap on individual components for detailed part information
✓ View text descriptions and annotations that can help augment 3D graphics
✓ Includes 26 sample instruction files
✓ Store files directly on your device
✓ Autodesk 360 account integration
✓ Simple, more intuitive user interface
• Requires Android 2.1 or above. Requires OpenGL 1.1 or above. Recommended devices include: 1GHz processor, 512MB RAM.
• Textures will only appear on Android devices with PowerVR chips when models with textures are published using R2011 and R2012 of Autodesk Inventor Publisher desktop software.
For more information visit:
http://www.autodesk.com/inventorpublisher and http://www.facebook.com/autodeskpublisher
•Fast—Real-time solving capabilities and immediate feedback on the simulation performance. Print, email, or view a results report on any HTML-enabled browser or mobile device.
•Easy—Intuitive interaction for drawing, constraining, and simulating concepts. Simply tap objects to select, and then move, rotate, and scale.
•Complete—Solutions for statically determinate and over-constrained or indeterminate problems.
•Integrated—Store, share and collaborate with Autodesk 360. Easy workflow continuation into CAD with industry-standard export capabilities via DXF™ files and email for file sharing.
The Autodesk ForceEffect Motion engineering app is perfect for developing mechanical systems with moving parts upfront in the in the design process, some of the features include:
•Freehand sketching of elements and construction lines with snaps, constraints, inferencing and dimensions
•Import image as background, simple manipulation
•Create functional mechanical joints (welded, pinned, sliding, collar, crossing)
•Create supports (fixed pin, grounded, sliding collar)
•Mechanism animation and functional drag
•Analyze positional data by adding trace points (trace path, velocity vectors)
•Interactive graphing of trace points (velocity, displacement, acceleration)
•Create Actuators (motors, linear)
•Results reporting with picture, animation, graph and graph data table
•Save and load files from Autodesk Cloud
•Export mechanism directly to ForceEffect to easily conduct static load analysis
•In app tutorials
With Tinkerplay you can easily design and 3D print fun characters, scary creatures or anything else you can imagine using the built-in part library. Simply drag parts together and they snap in place, just like in reality.
UNLEASH YOUR CREATIVITY
Customize your creation to make each part your own with amazing surface textures and shapes. Tap to change the entire part or use magnifying mode to design in detail.
3D PRINT YOUR CREATIONS
When your design is complete, you can easily 3D print all of the parts to make your creation real. Tinkerplay parts are designed to 3D print easily, with no rafts or supports. Ready to print? Downloading STL or .thing print files is a snap.
CREATE YOUR OWN OR TRY THE CHARACTER KITS
Make a scorpion or a ninja using the built-in character templates. Or mix things up and create a scorpion ninja with spikes and dinosaur skin.
STRIKE A POSE
Pose your creation in the app and get a feel for the real-life 3D printed version. All joints in the app bend and twist just like the real 3D printed parts. You can even create custom environments for that perfect photo of your masterpiece.
PLAY WITH OTHERS
Tinkerplay features full multi-touch support so you can design with others. Or, if you want to impress, drag, rotate, throw away and modify parts with many fingers at the same time. And don’t worry, everything you do is automatically saved. Undo and redo at will.
Print small parts to hold your creation in your hand quickly, or print large parts to really impress. With parts that snap together you can go as big as you like.
Note: 1GB RAM recommended for best performance.
Terms of service: http://www.autodesk.com/company/legal-notices-trademarks/software-license-agreements
Other info:Support: http://tinkerplay.zendesk.com
If you are a Buzzsaw user, you can use the Buzzsaw mobile app to:
Securely access your AEC project information
· Secure, authenticated access to your project data in the Buzzsaw cloud.
· Fully supports all 8 Buzzsaw permission levels for your AEC projects.
· Easily and securely access multiple projects and sites from your Android smartphone or tablet.
Review project designs and documents from anywhere
· View 2D and 3D DWF® files and data about specific elements in your designs when you are away from the office or at the jobsite.
· Download AutoCAD® DWG® and DXF™ files from Buzzsaw and open with AutoCAD WS for viewing.
· View project photos, images, and other documents.
Collaborate with your AEC project team
· Capture and share project photos and images with your project team.
· Open and edit DWG® and DXF® files managed on Buzzsaw directly from AutoCAD WS.
· Open and edit files managed on Buzzsaw directly from other mobile productivity apps via WebDAV.
If you are not a Buzzsaw user, sign up for a FREE 30-Day trial at www.autodesk.com/buzzsaw
