Mécanique du Colt 1903 et 1908

Gerard Henrotin - HLebooks.com

About this app

Dismantling campaign Colt "pocket hammerless"
- The arrangement of the slide on the frame
- Hooking the gun carcass

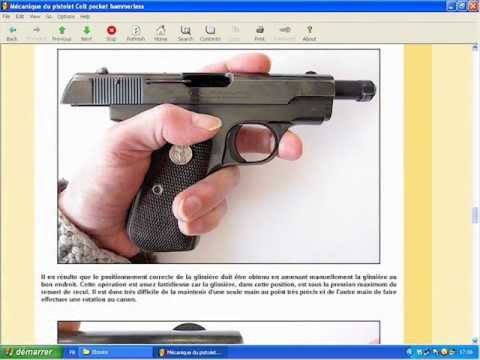

- Correct positioning of the slide
- Barrel Rotation
- Dimensions of the barrel
- Role of the mediant barrel rib
- Dimensions of the recoil spring guide
Advanced dismounting of the slide
- Removing the firing pin
- Cap screwed into the breech face
- Dimensions of the striker
- Removing the extractor
- Dimensions of the extractor
- Removing the cork stopper
- Dimensions plug stopper
- Dimensions of the rise and handlebar
Disassembly advanced carcass (I)
- Removing the grips
- Dimensions of the screw
- Loosening the grip safety
- Removing the safety lever
- Dimensions of the safety lever
- Removing the dog
- Dog with intermediate safety catch
- Dog without safety catch
- Dimensions of the dog without a safety catch
Disassembly advanced carcass (II)
- Removing the grip safety
- Dimensions of the grip safety
- Dimensions of the main spring
- Removing the trigger spring and magazine catch
- Dimensions of the trigger spring
- Dimensions of the magazine catch
Disassembly advanced carcass (III)
- Removing the trigger and disconnector
- Dimensions of the trigger
- Dimensions of disconnector
- Removing the trigger
- Dimensions of the trigger
- Removing the ejector
- Dimensions of the ejector
- Removing the magazine safety
- Dimensions of the magazine safety
- Exploded Parts
Operation Colt "pocket hammerless" (I)
- Constraints on the link gun-carcass
- Movement down the slide
- Return of the slide
- Guide and cartridge ejector
- Supply Ramps
- Phases of the extraction
- Sitting in the ejection guide
- Movement of the trigger
Operation Colt "pocket hammerless" (II)
- Functioning of the trigger mechanism
- Dog withheld in armed by the trigger
- Hole in the frustoconical body of the ejector
- Movement balance of disconnector
- Vertical movement of disconnector
- Disconnects when back
Operation Colt "pocket hammerless" (III)
- Dog and percussion mechanism
- Main spring resting on the roller of the dog
- Evolution of the shape of the trigger
- Dog Colt .45 with safety catch (comparison)
- Operation of the grip safety
Operation Colt "pocket hammerless" (IV)
- The manual safety explained
- The manual safety serving as armed indicator
- The magazine safety explained
Tips reassembly (I)
- Relocation of the magazine safety
- Relocation of the ejector
- Relocation of the trigger
- Relocation of the couple gate-disconnectors
- Relocation of the magazine catch
- Replacing the trigger spring
- Relocation of the grip safety
Tips reassembly (II)
- Blocking the trigger upright
- Relocation of the dog
- Securing the grip safety
