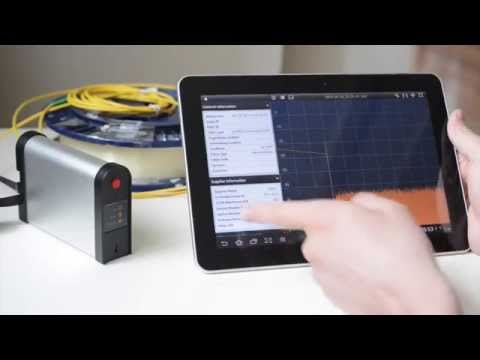

The Application Program Software is used for data analysis, processing and storage. With the USB interface port, enabling FiberPal OT-9000D iOTDR to transfer test data through portable device to cloud easily.
* Fiber Attenuation Measurement
* Fiber Fault Events Locating
* Fiber Break Point Locating
* Fiber Length Measurement
* Fiber Bending Non-reflective Events Loss Measurement and Locating
OS Environment: Android 4.x or Windows XP/ Windows 7
Support Tablet / Mobile Phones:
* Tablet: with USB OTG function
* Phone pad: with USB OTG function
APP Support Language: English (Option Traditional Chinese/Simplified Chinese )
Dimensions: 155(L)X 90(W)X 30(H) mm
* Operating: 0 to +50℃
* Storage: -20 to +70℃
Humidity: 0 to 85 % (non-condensing)
Wavelength option: 1310nm/1490nm/1550 nm/1625 nm or 1650 nm
Dynamic Range (SNR=1): 1~3 Wavelength@5km or 10km
Event Dead Zone: ≤ 3m
Attenuation Dead Zone: ≤ 9m
Pulse Width: 5ns,10 ns, 40 ns, 100 ns, 400 ns
Sampling Resolution: 0.25m ,0.5m, 1 m
Fiber: 9/125 µm single mode fiber
Connector: FC or SC
Sampling Point: ≥48000
Distance Accuracy: ± ( 3x10-5 x distance + marker resolution )
( Fiber index error not included )
Loss Accuracy: ± 0.05 dB/dB or 0.1 dB
Return Loss Accuracy: ± 4 dB
Max.Display: 5 km
I/O Port: mini USB (connect to Pad / NB)
Power meter: -30 dBm < Po < 0 dBm
* CD with User manual
* USB Cable
* VFL (option)
Ordering Information for OT-90XYD:
Example of Ordering statement: OT-90XYD
e.g. : OT-9074D= One of OT-90xxD series products with wavelength of triple bands of 1310 nm, 1490nm and 1550 nm and measurement range of 10km.
2 = 1550 nm
3 = 1310 / 1550 nm
6 = 1625 nm
7 = 1310 / 1490 / 1550 nm
Measurement Range (Y)
2 = 5 km
4 = 10 km
All rights reserved by Lightem Technologies Ltd.
