Earthing & Bonding Guide

Adiabatic Equation & Earth and Bonding Size Calculator calculates main earth conductor sizes, main earth bonding sizes and cpc circuit protective conductor sizes and now also includes the Adiabatic Equation. Also includes diagrammes.

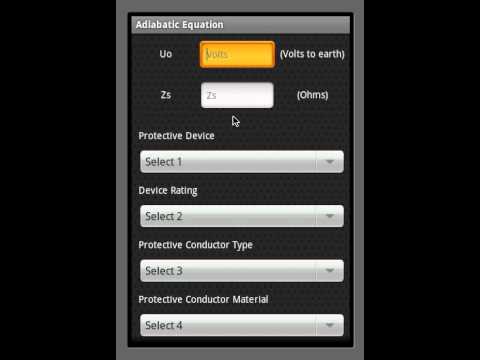

The Adiabatic Equation automatically calculates I squared, k values, PEFC Earth Fault Currents, t (time) and the minimum protective conductor size by selecting the options from the drop down lists. Fast, easy and simple.

This Electrical App Also Features:
+ Main Earthing Conductor Size Calculator
+ Main Bonding Conductor Size Calculator
+ Supplementary Equipotential Bonding Conductor Size Calculator
+ Circuit Protective Conductor cpc Size Calculator
+ Adiabatic Equation s= sqrt of (I2 x t) /k

Also calculates k values for:
+ Steel Conduit
+ Steel Trunking
+ Single Cables
+ SWA Steel Wire Armour / Sheath
+ Multicore cables

Also calculates electrical PEFC Earth Fault Currents.

A very handy electrical calculator for the electrician needing to check or calculate main earth bonding / grounding and circuit protective conductor sizes ( cpc ) by using the specified calculator which is based on the regulations tables or by using the Adiabatic Equation Calculator.

Remember to check out our full suite of electrical apps such as Cable Calc, Max Zs Values, Ohms Law, PFC Calculator, Watts Amps Volts Calculator, Adiabatic Equation, Electrical Tools & Reference, Earthing & Bonding...

http://www.procertssoftware.com
Read more
Collapse
4.3
19 total
5
4
3
2
1
Loading...

What's New

V.1.0 First Release.
V.2.0 Adiabatic Equation Added
V.2.1 Now supports all screen sizes + diagrammes added
