I can design a counter deluxe
100+
Downloads
Everyone
info
About this app
For electrical engineering students studying digital logic who are dissatisfied with the manual method of designing a Finite State Machine (FSM), our "I can design a counter" app automates this time-consuming activity.

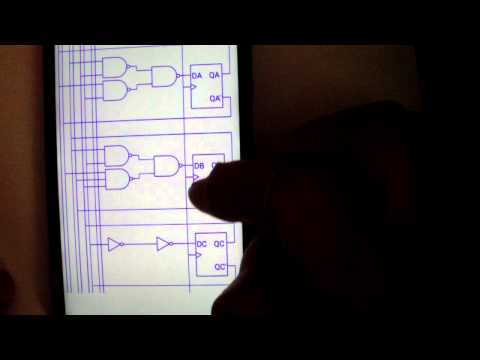

Unlike using a set of disconnected tools such as a diagram editor and a Karnaugh map simplifier, we have seamlessly integrated (1) a wizard, (2) a bubble diagram editor, (3) a truth table editor, (4) a Boolean expression minimizer, and (5) a circuit renderer into a single app. This means when you edit the bubble diagram, the table, the expression, and the circuit are instantly updated to match the bubble diagram. This feature permits you to conduct quick experiments in search for the least costly implementation.
The app also contains advanced features such as the ability to specify don't-care transitions and the ability to generate expressions for a J-K flip-flop implementation.
Our app is ideal for you if you are currently taking a course in computer design, since synchronous sequential logic circuit design is a key concept that you will surely encounter at some point during the class.
Version 3.x does everything version 1.x and version 2.x do.
Unlike using a set of disconnected tools such as a diagram editor and a Karnaugh map simplifier, we have seamlessly integrated (1) a wizard, (2) a bubble diagram editor, (3) a truth table editor, (4) a Boolean expression minimizer, and (5) a circuit renderer into a single app. This means when you edit the bubble diagram, the table, the expression, and the circuit are instantly updated to match the bubble diagram. This feature permits you to conduct quick experiments in search for the least costly implementation.
The app also contains advanced features such as the ability to specify don't-care transitions and the ability to generate expressions for a J-K flip-flop implementation.
Our app is ideal for you if you are currently taking a course in computer design, since synchronous sequential logic circuit design is a key concept that you will surely encounter at some point during the class.
Version 3.x does everything version 1.x and version 2.x do.
Updated on
Data safety
Developers can show information here about how their app collects and uses your data. Learn more about data safety
No information available
What's new
Version 3.3 fixed the 8-term rendering bug
