SensoDuino

296

Think of SensoDuino as a dozen or more free virtual shields for your Arduino each supporting a different sensor and function. All you need is your Android phone, Arduino, and a $10 HC-05 Bluetooth module. SensoDuino captures data from sensors built into your Android mobile device such as GPS, audio, gyro, date/time then transmits this data over an HC-05 Bluetooth module to Arduino or any device equipped with Bluetooth capabilities be it Windows PC, Mac, or microcontroller. OTHER SERIAL BLUETOOTH MODULES MAY OR MAY NOT WORK.


SensoDuino also saves the captured sensor data to a comma-delimited text file for graphing and analysis. You can control the frequency of sensor data acquisition, transmission, and logging (subject to the specifications of the sensor vendor.)

For more info: http://www.techbitar.com/sensoduino.html


PLEASE RATE: This is a free app and only through your ratings I can determine if it's worth supporting or discontinuing.


SensoDuino recognizes the following Android sensors IF THEY EXIST ON YOUR ANDROID DEVICE: Gyroscope, Accelerometer, Magnetometer/Compass, GPS, Light Level, Audio Level , Proximity, Pressure/Barometer, Temperature, Relative Humidity, Orientation, Gravity, Linear Accelerometer, Rotation Vector, Date, and Time.


Some software (virtual) sensors relay on the presence of hardware sensors to function. For example, the gravity sensor, linear acceleration sensor, and rotation vector sensor all of these software sensors relay on the presence of hardware gyro sensor on your Android device to function.


SensoDuino also features an Android sensor scanner that will list hardware and software sensors supported by your Android device as well as key sensor specifications such as max power consumption, resolution, vendor, etc.


FEATURES OVERVIEW


- Read Android sensors.
- Save android sensor data to comma-delimited text file.
- Transmit android sensor data in ASCII comma-delimited format via Bluetooth.
- List available Android device sensors both hardware and virtual (software).
- Configure speed of sensor data capture, logging, and transmission.
- Log accuracy of most sensor data.
- Keep device awake to prevent loss of sensor data logging.
- Support Android devices from version 2.33


ANALYTIC EXAMPLES
- Import geo-tagged sensor log into Google Map or GPSvisualizer.com for location analysis.
- Stream sensor data to a PC in real-time via Bluetooth for analysis and charting.


ELECTROMECHANICS & ROBOTICS EXAMPLE
- Use SensoDuino as a UAV & IMU controller for RC airplanes, quadcopters, etc.
- Use Audio, Light , Accelerometer (motion) sensors to trigger alarms, turn things on/off.
- Design game and robot controllers.
- Much more.


PERMISSIONS
SensoDuino needs your permission to perform the following tasks: log sensor data to your device SD, read GPS data, transmit sensor data via Bluetooth, read audio sensor (microphone), send application crash reports and user feedback via the internet, and network state for Google Analytics.


SENSODUINO USER GUIDE
http://www.techbitar.com/sensoduino.html

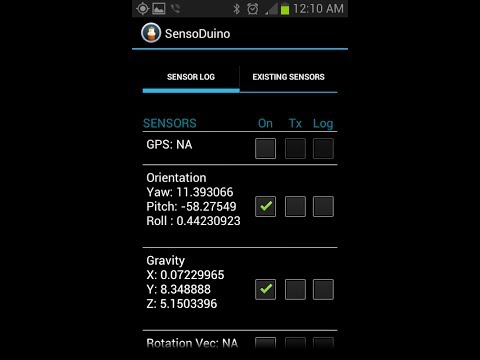

With new features added to SensoDuino, the captured screens may look slightly different from the production screens for a while until updated screenshots are uploaded.
Read more
4.6
296 total
5
4
3
2
1
Loading...

What's New

0.160
- SensoDuino gets a face lift.

0.159
- We now have a Date/Time "sensors." SensoDuino treats the Android system Time (H,M,S) and Date (Y,M,D) functions like any other sensor data that can be transmitted and logged.
- Supports sensor update increments of 60 minutes.
- Added Android KitKat (4.4) support.
- Misc enhancement.

RELEASED: Oct 8, 2013
Read more

Additional Information

Updated
December 4, 2013
Size
878k
Installs
10,000+
Current Version
0.160
Requires Android
2.3.3 - 4.4
Content Rating
Everyone
Permissions
Offered By
Hazim Bitar
