CNC Bolt Pattern is an application for the CNC technology.
CNC Bolt Pattern calculates the hole positions at a bolt pattern / bolt circle.
The inputfields can be filled in a different order.
- Input of diameter and hole spacing calculates the number of holes.
- Input of number of holes and diameter calculates hole spacing.
- aso ..
- Graphical preview
- Point list of the hole positions

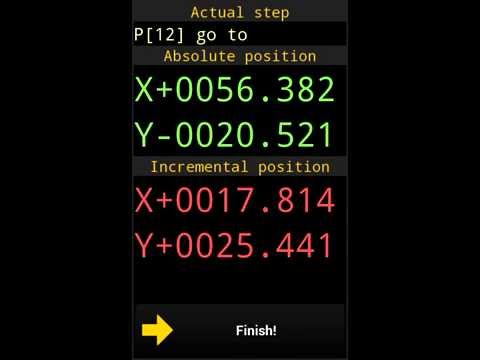

For users of a manual machine is the function "Manual" integrated. The hole positions (ABS or INC) can be approached step by step.
