HMI Modbus TCP, Bluetooth Free

97
Contains Ads

This software can be used as replacement for HMI operator panel. Some functions of Scada-systems such as reading and writing different data types are provided. Modbus TCP/IP protocol is supported. In order to use Modbus RTU/ASCII additional Modbus converter (for example tgw-715) is necessary.
If you need only viewer: https://play.google.com/store/apps/details?id=net.sagram.hmi_modbus_viewer.
Manual: https://drive.google.com/drive/folders/0B_ogMSvuFCPAcUgyZURYaDF1ZTg?usp=sharing
Also implemented communication through Bluetooth (Modbus RTU), can be used for communication via Bluetooth shield for Arduino and other devices.
Viewing requests and responses in Hex format in the log.

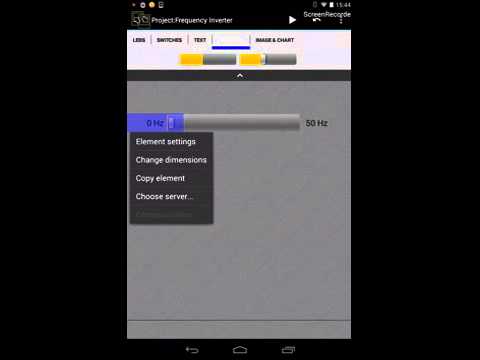

Program interface is based on Drag and Drop principle. Long tap on element in editing mode is used to move that element within workspace.
Most external HMI are using port no. 8000, PLC port usually set to 502.
Read/write functions currently supports Int 16, Int 32, Float, Float swapped, Boolean data types.
Software was tested on HMI panel Weintek MT6070iH, Delta DVP20EX2 PLC, Siemens s7-1200 PLC
Read more
4.6
97 total
5
4
3
2
1
Loading...

What's New

Added the ability to hide the top panel. Added ability to change the server for all elements. The possibility to use a common PLC number is added (you need to set the PLC address "-1" in the communication settings of the element)
Read more

Additional Information

Updated
June 13, 2018
Size
4.4M
Installs
10,000+
Current Version
1.52
Requires Android
4.0.3 and up
Content Rating
Everyone
Permissions
Offered By
Sagram.net
Developer
ul. Akademika Vilyamsa d. 68b kv. 47, Odessa (Odeshchyna), Ukraine. 65104
