PAcalculate

Doctor ProAudio

About this app

Over 42 calculations for pro-audio sound reinforcement and lighting, as well as reference info and utilities. A super handy tool for people dealing with PA, sound reinforcement, sound systems, electroacoustics, pro-audio and lighting

The app is very light (~1MB, like a typical mobile phone photo), works offline and uses no data bandwidth

More than 42 calculations spread across 26 calculators:
- SPL (sound pressure level). Enter sensitivity in dB SPL, power, number of loudspeakers, phase and distance
- SPL sum
- Air absorption attenuation for a given humidity, temperature, frequency and distance
- Ceiling speaker coverage
- Time «» Distance
- Audio frequency «» Wavelength (includes lambda/2 and 2*lambda/3 for line arrays or subwoofer arrays)
- Line Array transition distance (near field to far field)
- In-line (end-fire, gradient) array simulation with left/right mirroring
- Broadside (line) subwoofer array modelling with electronic or mechanical arcing and steering as well as end-fire/gradient(cardioid) lines
- dBu «» dBV «» Volts
- Q «» B/W (bandwidth)
- Limiter threshold (and times)
- Amplifier gain

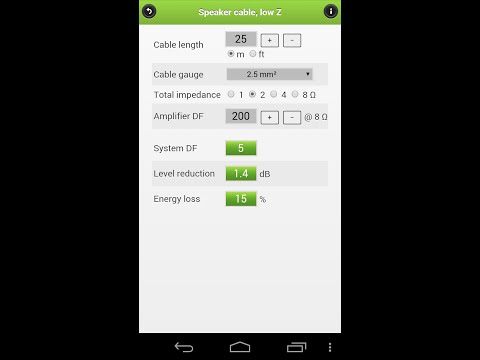

- Speaker cable: low impedance, high impedance (constant voltage line, 70V/100V). Calculates energy and level loss, system damping factor
- Electrical and musical calculators that are related to audio. Unit conversion
- Lights: DMX channel, RGB/RGBW/RGBA and CMY
- Reference info:
Pinouts, proaudio (XLR, 1/4", 1/8", SpeakOn, DB25) and lighting (XLR3, XLR5) and graphs (Fletcher&Munson, microphone polar plots)
- Utilities (inclinometer, flashlight-needs camera permission that can be later revoked in phone settings)

iOS (iPhone/iPad) version also available

Ratings and reviews

Exceptional tool for every day PA use. Lot of effort has been put into this and it shows.

Very usefull tools. Thank you

Thanks for nice App to calculate DJ Equipment's Question: While calculate Limiter threshold, Power input is in RMS power or any other power ?

What's new

1.3.2
- Broadside (line) array modelling with electronic or mechanical arcing and steering as well as end-fire/gradient(cardioid) lines
- Array modelling is now more insightful: provides a L/R mirror image option and 3 new graphics (isobar, coverage map and multi-angle freq. responses) as well as a horizontal mode that packs more information on the screen
- Easier introduction of values below 1 in Q «» BW
- Fixed main menu link to news and education
- Additional support for larger system fonts
